Graph clusteringbased discretization of splitting and merging methods (GraphS and GraphM)
Humancentric Computing and Information Sciences volume 7, Article number: 21 (2017)
Abstract
Discretization plays a major role as a data preprocessing technique used in machine learning and data mining. Recent studies have focused on multivariate discretization that considers relations among attributes. The general goal of this method is to obtain the discrete data, which preserves most of the semantics exhibited by original continuous data. However, many techniques generate the final discrete data that may be less useful with natural groups of data not being maintained. This paper presents a novel graph clusteringbased discretization algorithm that encodes different similarity measures into a graph representation of the examined data. The intuition allows more refined datawise relations to be obtained and used with the effective graph clustering technique based on normalized association to discover nature graphs accurately. The goodness of this approach is empirically demonstrated over 30 standard datasets and 20 imbalanced datasets, compared with 11 wellknown discretization algorithms using 4 classifiers. The results suggest the new approach is able to preserve the natural groups and usually achieve the efficiency in terms of classifier performance, and the desired number of intervals than the comparative methods.
Background
Discretization is a data reduction preprocessing technique in data mining. It transforms a numeric or continuous attribute to a nominal or categorical attribute by replacing the raw values of a continuous attribute with nonoverlapping interval labels (e.g., 0–5, 6–10, etc.). Different data mining algorithms are designed to handle different data types. Some are designed to handle only either numerical data or nominal data, while some can cope with both. Because real datasets are always a combination of numeric and nominal vales, for an algorithm that only takes nominal data, numerical attributes need to be discretized into nominal attributes before the learning algorithm. After discretization, the subsequence mining process may be more efficient as the data is reduced and simplified resulting in more noticeable patterns [1,2,3]. Moreover, discretization is also expected to improve the predictive accuracy for classification [4] and Label Ranking [5].
Two main goals of discretization are to find the best intervals or the best cut points^{Footnote 1} and to find the finite number of intervals or the number of cut points that are better adapted to the learning. Therefore, modelling a discretization requires the development of the following two subjects. First, discretization criterion is the criterion made for choosing the best cut points in order to split a set of distinct numeric value into intervals (Splitting, Top–Down methods) or merge a pair of adjacent intervals (Merging, Bottom–Up methods). Second, stopping criterion is a criterion for stopping the discretization process in order to yield the finite number of intervals.
The process of discretization typically consists of 3 main steps that are sorting attribute values, finding the cutpoint model or discretization scheme of the attributes by iterative splitting or merging, and finally, assigning each value in the attribute with a discrete label corresponding to the interval it falls into. Hence, the number of intervals obtained for attributes under question may be different depending on the number of possible cut points, the relation with the target class, for instance.
Discretization techniques can be classified in several different ways, such as supervised versus unsupervised, univariate versus multivariate, splitting versus merging, direct versus incremental, and more [6,7,8,9]. Supervised methods consider the class information, whereas unsupervised ones do not consider the class information. Splitting algorithms start from one interval and recursively select the best cut point to split the instances into two intervals, while merging methods begin with the set of single value intervals and iteratively merge adjacent intervals. The univariate category discretizes each attribute independently without considering its relationship between other attributes. However, multivariate methods also consider other attributes to determine the best cut points. Direct techniques require inputting the number of intervals supplied by the user. Example of this type of methods are equalwidth and equalfrequency discretization algorithms [10]. The number of intervals is equal for all attributes in these algorithms. In contrast, incremental methods do not require the number of intervals, but they require the stopping criterion to stop the discretization process in order to yield the best number of intervals of each attribute.
Most discretization algorithms proposed in the past were univariate methods [3]. ChiMerge [11], Chi2 [12], Modified Chi2 [13], and areabased [14] are examples of univariate, supervised, incremental and merging methods. They use statisticbased algorithms to determine the similarity of adjacent intervals. They divide the instances into intervals and then merge adjacent intervals based on \(\chi ^2\) distribution. CAIM [15], urCAIM [16], and CADD [17] are univariate, supervised, incremental and splitting methods. These algorithms use classattribute interdependence information as the discretization criterion for the optimal discretization with a greedy approach, by finding locally maximum values of the criterion. EntMDLP [18], D2 [19], and FEBFP [20], which are univariate, supervised, incremental and splitting methods, recursively select the best cut points to partition the instances based on the class information entropy [10]. PKID and FFD [21] are univariate and unsupervised methods that maintain discretization bias and variance by tuning the interval frequency and the interval numbers, especially used with NaiveBayes classifier.
The fact that univariate methods discretize only a single attribute at a time and do not consider interactions among attribute, may lead to important information loss [3] and not getting a global optimal result [22]. ICA [22], ClusterEntMDLP [23], HDD [3], and ClusterRSDisc [24] are examples of multivariate discretization methods. ICA, tries to get a global optimal result by transforming the original attributes to new attribute space that considers other attributes. Then, it discretizes the new attribute space using the univariate discretization method (EntMDLP). ClusterEntMDLP, similar to ICA, finds the pseudoclass by clustering the original data via kmeans [25] and SNN [26] clustering algorithms and then uses the target class and pseudoclass to discretize using the univariate discretization method (EntMDLP). It finds the best cut point by averaging both entropies that considers the target class and pseudoclass. HDD extends the univariate discretization method (CAIM) by improving the stopping criterion and taking into account information specific to other attributes. ClusterRSDisc attempts to obtain the natural intervals of attribute values by first partitioning using DBSCAN [27] clustering algorithm. After that, it discretizes an attribute based on the rough set theory.
Although several multivariate discretization algorithms overcome the drawback of univariate discretization methods by considering interactions among attributes, there are some weaknesses. Some of them have made use of cluster labels as a part of discretization criterion. As a matter of fact, different clustering algorithms or even the same algorithm with multiple trials may produce different cluster labels. Therefore, it is extremely difficult for a user to decide the proper algorithm and parameters [28,29,30]. Despite the reported improvement, some multivariate discretization algorithms such as EMD [31] do not concentrate the natural group of data. In fact, EMD is an evolutionary discretization algorithm that defines the fitness function based only on high predictive accuracy and lower number of intervals. Hence, the identified cut points may damage the natural group of data.
In order to solve the aforementioned problems, this study presents a novel graph clustering based algorithm that allows encoding of different similarity measures into a graph representation of the examined data. Instead of using cluster labels, the proposed method uses the similarity between data pair, which is the weighted combination between distance and targetclass agreement. Each pair of data is formed into graph, which is then partitioned in order to find the appropriate set of cutpoints. The insightful observations and the benefit of graph clustering are present as follows.
In the clustering process, the instances are partitioned into clusters based on their similarity. Instances in the same cluster are similar to one another and dissimilar to instances in other clusters [1, 32]. Clustering is a method for recognizing and discovering natural groups of similar elements in a dataset [33, 34]. Recently, clustering with graphs has been widely studied and become very popular. The method is to treat the entire clustering problem as a graph problem. The graph vertices are grouped into clusters based on the edge structure and property [35]. Graph clustering algorithms are suitable for data that does not comply with a Gaussian or a spherical distribution [36]. They can be used to detect clusters of any size and shape. Moreover, graph clustering is a very useful technique for detecting densely connected groups [37]. The goal of graph clustering is the separation of sparsely connected dense subgraphs from one another based on various criteria such as vertex connectivity or neighborhood similarity [38].
The main graph clustering formulations are based on graph cut and partitioning problems [39, 40]. According to the research of Foggia et al. [36], the performance of five graph clustering algorithms: fuzzy cmeans MST (minimum spanning tree) clustering [41], Markov clustering [34, 42], iterative conductance cutting algorithm [43], geometric MST clustering [44], and normalized cut clustering [40] are evaluated and compared. Based on this empirical study, it is confirmed that the normalized cut clustering provides good performance and appears to be robust across application domains. The normalized cut criterion avoids any unnatural bias for partitioning out small sets of points [40]. It is used in many works such as image segmentation and spectral clustering [45, 46].
With these insightful observations, the paper introduces new discretization algorithms, which exploit graph clustering and the normalized cut criterion. Because the minimum normalized cut criterion is equivalent to the maximum normalized association criterion (see “Measures with clusters” for details), to design the stopping criterion, this normalize association criterion is chosen in this study. In particular, two new graph clusteringbased techniques, which are splitting method (GraphS) and merging method (GraphM), are proposed. It is worthwhile to highlight several aspects of the proposed models here:

The proposed discretization algorithms are incremental and multivariate methods. They find the number of cut points automatically and preserve the natural group of data by considering the correlation dependence among the attributes.

The algorithm encodes information of data under examination as a graph, where the weight of each edge is evaluated by both natural distance and class similarity. This is a novel with the capability to address both datawise relation and classspecific in the same decision making process.

The normalize cut criterion prevents an unnatural bias that partitions out a small set of points. It helps to avoid acquiring toosmallsize intervals with only a few members, thus demoting the overfit problem.
The rest of this paper is organized as follows. “Graph clustering and partitioning problems” provides the basis of graph clustering as to set the scene for proposed work and following discussions. In “A novel graph clusteringbased approach”, the new algorithms are presented with related design issues being explained. The performance evaluation is included in “Performance evaluation”, based on the experiments with a rich collection of benchmark data. The paper is concluded in “Conclusion”, with possible future work.
Graph clustering and partitioning problems
In this paper, the undirected weighted graph with no selfloops and global graph clustering are focused. Global graph clustering assigns all of the vertices to a cluster, whereas local graph clustering only assigns a certain subset of vertices [35]. In brief, the reviews in this section are on these two types of undirected weighed and global graph clustering.
Throughout this paper, let \(G = (V, E, \omega )\) be an undirected graph, \(V = \{v_1, \ldots , v_n\}\) is a set of vertices and the number of vertices \(n=V\), where each vertex \(v_i\) represents a data point \(x_i\), and \(E=\{(u,v) \mid u,v \in V\}\) is a set of edges and the number of edges \(m=E\), where \(\omega (u,v)\) is the positive weighting of the edges. Let the set of partitioning or clustering of G be \(\pi _k=\{C_1, \ldots , C_k\}\), where \(C_i\) is a cluster in k subclusters.
Clustering measures
Measure with vertices
This type of measures is based on similarities or distances of the object pairs. They are used to apply to many areas such as pattern recognition, information retrieval, and clustering [47]. The common distance measures that are used in clustering are Euclidean and Manhattan distance [48].
Euclidean distance It simply is a geometric distance in a multidimensional space. It is a multivariate extension of the Pythagorean distance between two points. The formula for this distance between data points \(u(u_1, \ldots , u_d)\) and \(v(v_1,\ldots , v_d.)\) with d dimensions is shown in the Eq. 1.
Manhattan distance It is also called the Cityblock distance, Rectilinear distance, and Taxicab norm. The result of this distance is the distance similar to Euclidean distance. However, the effect of outliers is dampened because they are not taking the square root [49]. The distance is computed as the Eq. 2.
Measures with clusters
Graph clustering is dividing a graph into groups (cluster, subgraph) that vertices highly connect in the same group [50]. To compare the quality of a given cluster C, the cluster fitness measure (quality function) or indices for graph clustering [33, 44, 51] are used [35, 52]. This study categorizes the clustering indices into two groups: density measures, and cutbased measures.
Density measures In the wrok of Görke et al. [53], many density measures such as intracluster density, intercluster density, intercluster conductance, and modularity are examined. These measures are used for unweighed graphs. They compute with number of vertices and edges in a cluster and another clusters. Brandes et al. [44] proposed the coverage of the graph clustering based on the number of intracluster edges and intercluster edges as shown in Eq. 3, where \(m(C_i, C_i)\) and \({m}(C_i, \bar{C_i})\) are the numbers of intraedges and interedges in the cluster \(C_i\) respectively. Those edges are shown in Fig. 1. A large value of coverage indicates the better quality.
Cutbased measures In undirected weighted graphs, graphcut techniques such as ratio cut [54], min–max cut [55], and normalized cut [40] are mostly used to solve graph partitioning problem, which are ones of the main keys to graph clustering algorithms. Those measures are formulated in Eqs. 4, 5, and 6 respectively, where \(\omega (C_i,C_i)\) and \(\omega (C_i,\bar{C_i} )\) are the sum of weighted edges of intercluster edges and intracluster edges of \(C_i\), respectively; \(n(C_i)\) is the number of vertices in the cluster \(C_i\).
The smallest value of these criteria indicates a better quality of partitioning. Normalized cut avoids unnaturally partitioning out any too small set of vertices by taking the fraction out of the total weighted edges connected to all nodes in the graph. On the other hand, instead of considering the minimum cut among the clusters, partitioning can be done based on the maximum connection, called normalized association, as defined in Eq. 7. In addition, normalized association can define as Eq. 8.
provided that
The minimum NCut and the maximum NAsso are equivalent and naturally related as \(NAsso(\pi _k) = kNCut(\pi _k)\). In the authors’ observation, the \(coverage(C_i)\) is similar to \(NAsso(C_i)\), which changes the number of edges to the sum of weighted edges as demonstrated in [33].
Global graph clustering
The problem of global graph clustering is a dividing or grouping each vertex in the graph into clusters of predefined size, such that vertices in the same cluster are highly related and less related with vertices in the other clusters. The main clustering problem is NPhard; therefore, the algorithms selected are approximation algorithm, heuristic algorithm, or greedy algorithm [35] so that the computation time is reduced.
Spectral clustering
The main tool for spectral clustering is the Laplacian matrices technique [56]. The algorithm transforms the affinity matrix (similarity matrix) into Laplacian matrix of the graph and then finds the eigenvector and eigenvalue from the matrix. Each row of eigenvector represents a vertex (data point). The final stage is clustering or partitioning of those vertices by recursive twoway (bipartition) or direct kway [39].
The unnormalized kmeans algorithm [57] is an example of direct kway clustering. It clusters the vertices using kmean algorithm with the number of desired clusters. The twoway normalized spectral clustering (2NSC) and kway normalized spectral clustering (KNSC) algorithms are proposed by [40] to solve the generalized eigenvalue system using NCut criterion. 2NSC is a recusive twoway clustering that the number of clusters is controlled directly by the maximum allowed NCut value, whereas KNSC is direct kway clustering based on kmean algorithm.
Markov chains and random walks
The Markov cluster algorithm (MCL) [34] finds the cluster structure in the form of graphs using the mathematical bootstrapping procedure. The main idea of MCL is to simulate the flow within a graph, promote the flow where the current is strong and demote the flow where the current is weak. If there is any natural group in the graph, the current across between groups will wither away. The algorithm also simulates random walks within a graph, starting from a vertex and randomly travelling to another vertex that connected with many steps. Travelling within the same cluster is more likely than across the other cluster.
A novel graph clusteringbased approach
This section introduces a new graph clusteringbased approach to discretization problems. Figure 2 summarizes the entire process of the proposed framework, which includes three main steps: (1) create the affinity matrix using the pairwise distances and class similarity, (2) create discretization schemes, and (3) discretize the datasets by applying the discretization schemes.
This approach is based on the intuition of representing data points as a graph, finding cut point models of numeric attributes based on graph clustering, and transforming numeric to nominal data. Given the Toy dataset as shown in Fig. 3a, the graphical representation of this dataset is demonstrated in Fig. 3b. It assigns the weight of each edge between each pair of the data points based on similarity, which both target class and distance are considered. If the data points of the pair are close and in the same class, the edge will have a high score. This scoring is stored in the affinity matrix (see “Pairwise affinity matrix” for details). After that, graph clustering is used to find the best cut point that cuts the minimum weighted edge as shown in Fig. 3c, where vertical and horizontal dashed lines are the best cut points that cut minimum weighted edges of attributes \(A_1\) and \(A_2\), respectively (see “Graph clusteringbased discretization algorithm” for details).
Pairwise affinity matrix
The pairwise affinity matrix (AF matrix) is an \(n\times n\) matrix that contains the similarity scores of the pair of data points, where a high score means the pair has high similarity. In this study, the graph is represented by an AF matrix. The distance and class similarity values of the pair are considered for scoring in order to find the similarity. Before scoring, each value of the data points \(x_i\) in the numeric attribute \(A_j\), \(val_{ij}\) is the rescaled (normalized) between 0 and 1 in order to give all attributes the same treatment as shown in Eq. 10, where \(val^*_{ij}\) is new rescale value of \(val_{ij}\), \(min_{A_j}\) and \(max_{A_j}\) are the minimum and maximum values of the attribute \(A_j\), respectively.
In this study, the similarity measure, sim(u, v), is proposed as Eq. 11. It contains 2 main measures. First, simC(u, v) is a classlabel measure of a pair of the data points u and v. Second, the distance measure, based on the Euclidean distance (see Eq. 1), adds a fraction of the number of attribute d in the square root in order to normalize the distance to be between 0 and 1 and subtracts the distances from 1 in order to change to the similarity (small distance values indicates high similarity). In addition, the distance of a pair in the nominal attribute is set to 1 if the pair has the same value and 0 otherwise.
provided that
The proposed similarity measure considers both the distance and class labels for scoring. The measure weights those values equally by combining them altogether. Each element in the AF matrix contains the sim(u, v) value of each datapoint pair, and \(AF\in [0,2]^{n\times n}\).
Graph clusteringbased discretization algorithm
Typically, the discretization algorithm discretizes attribute one by one. The process consists of three main processes. First, sorting an attribute \(A_i\) and finding all the possible cut points. Second, finding the cut point model of the attribute by iteratively finding the model one by one until discretization is complete on all of the numeric attribute. Finally, transforming the numeric attribute to the nominal attribute.

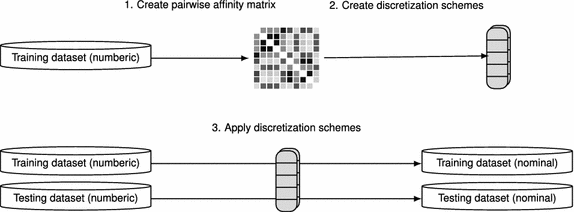

In order to show the difference of the data view of the proposed algorithm, an example of the Toy dataset shown in Fig. 3 is again considered. The dataset has 2 numeric attributes, \(A_1\) and \(A_2\). In order to discretize the attribute \(A_1\), the data views of discretization algorithms are different depending on discretization methods. Figure 4 shows the four different data points views.

After sorting the attribute \(A_1\), discretization algorithm that is unsupervised and univariate method only considers the cut points as shown in Fig. 4a. The algorithm selects the cut point that all intervals have the similar number of data points or similar length.

For discretization algorithm that is the supervised and univariate method, after sorting \(A_1\), the algorithm only considers the class labels as shown in Fig. 4b. The algorithm discretized based on the purity class. The data points with the same class label are grouped. However, this method does not consider other attributes; therefore, it tends to lose the natural group.

The ClusterEntMDLP [23] is an example of supervised and multivariate method. This type of algorithms includes other attributes into consideration. The data are clustered and labelled. Then, the algorithm discretizes by considering class labels (see Fig. 4b for details) and cluster labels (see Fig. 4c for details) together.

In the proposed algorithm, the data point view is based on the graph as shown in Fig. 4d. The vertices represent the data points and the edges’s weights represent the scores of similarity of the vertex pairs (see “Pairwise affinity matrix”). As both class and cluster labels are considered, this data view preserves much more information than the other views.
As the benefit of the data view under graph representation, this paper proposed 2 discretization algorithms using this data view: spiting and merging methods. The discretization criterion and stopping criterion of these algorithms are based on the NAsso criterion (see “Measures with clusters” for details). The algorithms attempt to find the best set of cut points so that the data points in each cluster after partitioning are mostly similar judging from the weighed edges.
The proposed splitting discretization algorithm
In the basis of splitting methods (top–down methods), all data points are grouped into clusters/intervals. The algorithms add a new cut point to bipartition the clusters iteratively. The process stops partition until the number of cut points is satisfied. Similarly, the proposed splitting discretization bipartitions the clusters as a tree structure as shown in Fig. 5.
In this proposed top–down algorithm, the discretization criterion of NAsso is used to consider the best new cut point. This criterion based on the sum of weights of intracluster and intercluster. To easily find these values, the order of the pairwise affinity matrix is used to calculate. Figure 5 is an example of discretization of attribute \(A_1\) of the Toy dataset. The procedures are as follows:

Firstly, reorder the pairwise affinity matrix of \(A_1\) in ascending as shown in the top matrix in Fig. 5. The matrix is \(10\times 10\) elements. Each element contains the pairsimilarity value, which in this example is represented by color, where a dark color indicates high similarity and a light color indicates low similarity.

Then, calculate the NAsso values of all possible cut points (vertical dashedlines). The example of calculating NAsso value of the cut point 3.5 is shown in the middle pairwise affinity matrix. The two square boxes in the matrix are the intracluster weights of 2 partitions. The row outside the box is the intercluster weight of the boxed. The algorithm calculates NAsso values of all 6 cut points and select a cut point at 3.5 according to its highest NAsso values. Then, it bipartitions a graph into 2 clusters.

Finally, iteratively find the new best cut point until the stopping criterion is satisfied. In the figure, the second cut point is 9 with the highest NAsso value of 1.039. Because the value does not improve the NAsso value at the previous cut point (\(cut=3.5\), \(NAsso=1.076\)), the stopping criterion is stratified and stops at the previous step (see next paragraph for the details). Hence, attribute \(A_1\) has 2 intervals with the cut point at 3.5.
The proposed stopping criterion is based on the significant improvement of NAsso values, as the higher NAsso denotes the higher similarity or community of data points in each cluster. If NAssso value drops or does not significantly improve after partitioning, it should stop discretization. The proposed stopping criterion is shown in Eq. 13, where \(NAsso(\pi _i)\) and \(NAsso(\pi _{i1})\) are NAsso values of the graph partitioning results with the set of i and \(i1\) clusters, respectively, and \(\beta\) is the significant improvement percentage. If the stopping criterion is true, the discretizaton will stop and the result is given as \(\pi _*=\pi _{i1}\).
The examples of the trend of NAsso value (average of all numeric attributes) of 4 real datasets obtained from the benchmark UCI repository [58] of blood, glass, iris, and yeast are illustrated in Fig. 6. It shows that, for all 4 datasets, when increasing the number of clusters (number of intervals), the NAsso values drastically increase at the beginning, then slowly increase and finally slowly decrease. To prevent over partitioning at the slowly increasing of NAsso value, the new NAsso value, \(NAsso(\pi _i)\), should be significantly better than the previous NAsso value, \(NAsso(\pi _{i1})\). This study sets the new NAsso value should have 1% higher in significance than the previous value i.e., \(\beta =1.01\) (see “Parameter analysis” for details).
The details of the proposed splitting graph clusteringbased discretization algorithm is shown in Fig. 7.
The proposed merging discretization algorithm
In contrast to splitting methods, the basic merging methods (bottom–up methods) start from many initial clusters. Each initial cluster contains data points that have the same attribute value. The algorithm iteratively merges the adjacent pair of clusters that the data points of the pair are most similar until the stopping criterion is met.
The proposed merging discretization algorithm includes 2 main steps. The first step is creating initial clusters, the data points in the clusters have the same attribute value. After that, the adjacent initial clusters that are given highest NAsso value after merging are selected to merge. The algorithm iterates merging the adjacent clusters, one by one until all of the clusters is grouped into a single cluster (1 interval), its forming is like a hierarchical tree as shown in Fig. 8. The next step is finding the best set of clusters \((\pi _*)\) by examining topdown. This step starts from two intervals. It selects three intervals or higher intervals if significantly improve the NAsso value.
For demonstrating an example of this process, the Toy dataset is used again as shown in Fig. 8. In the first step, the initial clusters are created by grouping the data points of attribute \(A_1\) that have the same attribute values and reordered the values in ascending. The initial clusters have 7 clusters, \(\pi _7=\lbrace C_1,C_2,\ldots ,C_7\rbrace\). After that, two adjacent clusters that have highest NAsso values are merged until all clusters are grouped into one cluster \((\pi _1)\). In Fig. 8, the adjacent clusters of the cut point at 1.5, two initial clusters that contain attribute values of 1 and 2 possess the highest NAsso value, therefore, this pair is merged first. The adjacent clusters (intervals) are merged further until only one cluster whose NAsso value is 1 remained. In the second step, the best set of clusters \((\pi _*)\) is searched by evaluating the NAsso values top–down. This bottom–up algorithm uses the stopping criterion as in the top–down algorithm (see Eq. 13). As one can see that, the set of 3 clusters \((\pi _3)\) separated by the cut point of 9, the \(NAsso(\pi _3)\) value is 1.039 that less than 1.076 of the \(NAsso(\pi _2)\) value in the set of 2 clusters, hence \(\pi _*=\pi _2\).
The detail of the proposed merging graph clusteringbased discretization algorithm is shown in Fig. 9.
Numeric to nominal transformation
In Fig. 7 (GraphS algorithm) and Fig. 9 (GraphM algorithm), each cluster in \(\pi _*\) is equal to the interval, which contains the data point values. The intervals are transformed to discretization scheme as Eq. 14, where \(D_A\) is a discretization scheme of attribute A, and \(cut_i\) is the result of cut point selection of attribute A.
In the example of attribute \(A_1\) of the Toy dataset, the cut point list has only 1 cut point at 3.5. The discretization scheme of the attribute is \(\lbrace (\infty ,3.5], (3.5,+\infty ]\rbrace\). In this study, the numeric values of \(A_1\) that are equal or less than 3.5 would be changed to “(inf_3.5]” and the values that are higher than 3.5 are denoted as “(3.5_inf]”. Each value of the numeric attribute is transformed to the interval name by checking the condition in the discretization scheme.
Performance evaluation
This section presents the performance evaluation of the graph clusteringbased approaches that are splitting approach (GraphS) and merging approach (GraphM). In order to show the goodness of the proposed approaches that can handle with real world applications, this study investigated 30 real standard datasets and 20 imbalanced datasets. This study evaluates the proposed methods by comparing with 11 discretization algorithms using 4 classifiers with the objective to evaluate and compare the performance of the selected discretization algorithms.
Investigated datasets
The experimental evaluation is conducted on 30 standard datasets and 20 imbalanced datasets. The standard datasets obtained from the benchmark UCI repository [58] as summarized in Table 1. The imbalanced datasets achieved from Keeldataset repository [59, 60] as described in Table 2. In these datasets, some datasets have only numeric attributes and some have both numeric and nominal attributes. Because a small number of distinct values of a numeric attribute could be ambiguous with the nominal attribute. In the table, a numeric attribute with no more than two distinct values is regarded as a nominal attribute. This study also evaluated the Toy dataset (see Fig. 3 for details) in order to compare the different results of the algorithms of interest.
Experiment design
An experiment is set up to investigate the performance of the proposed algorithms compared to 11 discretization algorithms, which have variously different techniques. For comparison, 4 classifiers of: C4.5 (j48) [61], KNearest Neighbors (KNN) [62], Naive Bayes (NB) [63], and Support Vector Machine (SVM) [64] classifiers which are in the top 10 algorithm in data mining [65, 66] are examined.
The standard datasets considered are partitioned using the tenfold crossvalidation procedure [67]. Each discretization algorithm performed with pairs of 10 training and 10 testing of each dataset. For the imbalanced datasets, each dataset was separated in fivefold already, this study evaluates them using fivefold crossvalidation procedure.
The performance measures
To evaluate the quality of the discretization algorithms, the following 3 measures are employed: number of intervals, running time, and predictive accuracy, respectively.
The number of intervals The result of the number of intervals is expected to be a small number as a large number of intervals may cause the learning to be slow and ineffective [7, 19], and the small number of intervals is easier to understand. However, too simple, too small discretization schemes may lead to lose classification performance [16].
Furthermore, this study compared the average number of intervals per attribute of the discreteization algorithms. Let \(D^u= \lbrace d_1^u,d_2^u,\ldots \rbrace\) be a set of numeric attributes, \(NC(d_i^u,r_j)\) be a number of cut points of attribute \(d_i^u\) of dataset \(r_j\). The average number of intervals per attribute of dataset \(r_x\), \(AI(r_x)\) is computed as Eq. 15, where \(NC(d_i^u,r_x)+1\) is the number of intervals of attribute \(d_i^u\) in the dataset \(r_x\).
The running times To create a discretization scheme (cut points model), the process of discretization is done only once with the training dataset. It seems to be an important evaluation; however, it should not take too long in order to be able to discretize with the real world dataset, which normally high number of data points.
The predictive accuracy The successful discretization algorithm should perform discretization such that the predictive accuracies are increased or without significant reduction of predictive accuracy. This study evaluates the classification performance of 30 standard datasets using predictive accuracy. The predictive accuracy results of the dataset are summarized by the mean of its 10 folds.
AUC Because the predictive accuracy is not a suitable measure for imbalanced data, this study evaluates 20 imbalanced datasets using AUC (area under the ROC curve) [68, 69]. The AUC is wildly used for classification evaluation for imbalanced data [70, 71], which measure the diagnostic accuracy of a test. The AUC value lies between 0 and 1, the higher value is the better average accuracy test. This study summarized AUC results of 20 imbalanced dataset by the mean of its 5 folds.
Statistical analysis
In this study, the ranking of discretization algorithms is obtained from the Friedman test [72, 73]. The discretization algorithm that obtains the lowest rank value is the better performance. Friedman test is nonparametric statistical test for assessing the difference between several related samples. It gives the mean rank for each discretization algorithm based on median difference, such that the algorithm with high averaged accuracy may not be in the first rank. If the Friedman test can show that at least one algorithm is significantly different from at least another algorithm (using a level of significance \(\alpha =0.05\)), two posthoc tests of Nemenyi and Holm are used to find the significantly different.

1.
The Nemenyi posthoc test [74] is used to find the critical difference (CD). Two algorithms are significantly different if the corresponding average ranks differ by at least the CD (using 95% confident level).

2.
The Holm posthoc test [75, 76] is used to find the pvalue of the posthoc Holm (\(p_{Holm}\)) of each pair comparison. The discretization algorithm that obtains the lowest rank value is set as a control algorithm. The control algorithm is compared against the rest algorithms.
These tests performed with three comparisons of: a ranking of the number of intervals, ranking of running time, and ranking of classification performances (predictive accuracy and AUC).
Compared discretization algorithms
In order to properly examine the potential of the proposed discretization algorithms (GraphS, GraphM), they are evaluated against 11 wellknown discretization algorithms. Those algorithms are Ameva, CAIM, ChiMerge, EMD, FFD, FUSINTER, HDD, MChi2, PKID, urCAIM, and Zeta, which various discretization types as shown in Fig. 10. EMD and urCAIM are recently published which show high classifier’s performance. This study takes urCAIM program that is distributed from the authors urCAIM^{Footnote 2}, EMD program is derived from the authors of EMD, and the rest discretization programs are taken from KEEL software [59, 60]. The programs of GraphS and GraphM are included as an Additional file 1. The details of comparison algorithms are described as:
Ameva [77] An autonomous discretization algorithm (Ameva) is univariate, supervised and splitting methods. The discretization criterion of the algorithm based on \(\chi ^{2}\) values. There are two objectives of Ameva: maximize the dependency relationship between the target class and an attribute, and minimize the minimum number of intervals.
CAIM [15] ClassAttribute Interdependence Maximization discretization algorithm (CAIM) is a splitting method proposed by Kurgan and Cios. The goal of the algorithm is to find the minimum number of discrete intervals, while minimizing the loss of classattribute interdependency for the optimal discretization with a greedy approach. It iteratively finds the best cut point in order to split into two intervals until the stopping criterion is satisfied. The algorithm mostly generates discretization schemes that the number of intervals equal to the number of classes [16, 78].
ChiMerge [11] ChiMerge is a merging method introduced by Kerber. It uses a \(\chi ^{2}\) values as a discretization criterion. It divides the instances into intervals of distinct values and then iteratively merges the best adjacent intervals until the stopping criterion is fulfilled. The stopping criterion of ChiMerge is related to the \({\chi ^2}threshold\), and in order to compute the threshold the user must specify the significance level.
EMD [31] The Evolutionary Multivariate Discretizer (EMD) is a multivariate method based on CHC algorithm [79], the subclass of Genetic algorithm that is one of the powerful search methods. The algorithm defines a fitness function for two objectives of: the lower classification error (based on C4.5 and NB classifiers) and the lower number of cut points. A chromosome is encoded as a binary array of the cutpoints selection, 1 is selected and 0 otherwise. The chromosome is encoded for all possible cutpoints of continuous attributes. Therefore, the algorithm requires a lot of time in order to search for the optimal result, especially in high dimension of data and large number of instances.
FFD and PKID [21] These algorithms are unsupervised method proposed by Young and Webb. The key of the algorithms is to maintain discretization bias and variance by tuning the interval frequency and the interval numbers, especially used in NaiveBayes classier. The fixed frequency discretization (FFD) sets a sufficient interval frequency m, then discretizes such that all intervals have approximately the same number m of training instances with adjacent values. The proportional discretization (PKID) sets the interval frequency and the interval number to be proportional to the amount of training data in order to achieve a low variance and a low bias.
FUSINTER [80] This algorithm is a greedy merging method. It uses the same strategy as ChiMerge. The main characteristic of the algorithm is that it is based on the sensitivity measure of the sample size to avoid very thin partitioning. The algorithm first merges the adjacent intervals that all instances of the intervals are the same target class, and continues until no improvement is possible or the number of intervals reaches 1. The user must specify 2 parameters, \(\alpha\) and \(\lambda\), which are significance level and variable tuning, in order to control the performances of the discretization procedure.
HDD [3] HDD extends CAIM by improving the stopping criterion and discretization by taking other attributes into account (multivariate method). The algorithm considers the distribution of both target class and continuous attributes. The algorithm divides the continuous attribute space into a finite number of hypercubes that the objects within each hypercube belongs to the same decision class. However, the algorithm mostly generates a large number of intervals and has slow discretization time [16].
MChi2 [13] Modified Chi2 (MChi2) is proposed by Tay and Shen. It is a merging method using statisticbased \((\chi ^2)\) to determine the similarity of the adjacent intervals. The algorithm enhances Chi2 algorithm [12] by making the discretization process completely automatic. It replaces the inconsistency check in the Chi2 with a level of consistency that is approximated after each step of discretization. The algorithm also considers the factor of degree of freedom in order to improve the accuracy.
urCAIM [16] The algorithm proposed by Janssens et al. It improves CAIM which combines the CAIR [81], CAIU [82], and CAIM discretization criterion together in order to generate more flexible discretization schemes, require lower running time than CAIM, and improve predictive accuracy, especially in unbalanced data.
Zeta [83] This algorithm is introduced by Ho and Scott. It is a direct method that the user must specify the number of intervals, k, where each attribute is discretized into k intervals. The discretization criterion of the algorithm is based upon lambda [84] that is widely used to measure strength association between nominal variables. This criterion is defined as the maximum accuracy achievable when each value of a feature predicts a different class value.
Parameter settings
Many discretizaion algorithms desire the input parameters from the user before discretization. Same parameters of the classifiers must also be set. Since the different parameters affect the performance, in order to evaluate the quality of discretization algorithms, those parameters of discretization algorithms and classifiers specified in Table 3 are set as recommended by [7] and [31] .
Experiment results and analysis of standard datasets
Number of intervals
The average numbers of intervals per attribute of 30 standard datasets for 13 discretization algorithms are shown in Fig. 11a (calculated with Eq. 15). The details of the result are included as an Additional file 2.
In the figure, the lowest average number of intervals per attribute of all datasets belongs to EMD (2.04), the second is Ameva (2.51), and the third is ChiMerge (2.99). Since EMD uses the predictive accuracy of C4.5 and NB as a part of the fitness function, some attributes excluded from the final classification model will have no cutpoint, i.e., the whole attribute domain is considered as only 1 interval. For ChiMerge, the number of intervals depends on the user’s specification on the significant level (\(\alpha\)). If the user sets this value high (\(\alpha\) close to 0), the algorithm will over merging, leading to a low number of intervals. EMD and ChiMerge generate one number of intervals of some attributes, the attributes are removed in classification learning. Unlike EMD and ChiMerge that are an implicit coupling of supervised feature selection and discretization, GrpahM and GraphS concentrate on the later, with the possibility to combine with many advanced feature selection methods. The average number of remove attributes of all discretization algorithms is summarized in Fig. 11c.
Many datasets of CAIM, and Zeta have the lowest number of intervals. CAIM discretizes with the number of intervals close to the number of target classes. If there are many target classes, the number of intervals of CAIM is high too (if there is enough number of cut points to split). Zeta is a direct method that fixes the number of intervals equal the number of target classes. Resulting in all attributes having the equal number of intervals.
Running time
Figure 11b presents the actual computational time (in seconds) required for creating the discretization scheme and discretization from the experimented datasets. These algorithms are implemented in Java and all experiments are conducted on an Intel(R) Xeon(R) CPU@2.40 GHz and 4 GB RAM. The execution time is measured using the System.currentTimeMillis() Java method (\(endTimestartTime\)).
The execution time averages from tenfold discretization (the time of classifier learning not included). The fastest technique over 30 standard datasets is PKID (0.109 s), while the slowest is EMD (113.435 s). With these, EMD is more than a 1000 times slower than PKID. That is because EMD is designed as an evolutionary process, which uses a wrapper fitness function with the chromosome encoding all cutpoint of examined attributes. Without applying any approximation heuristics, EMD naturally requires a long time to look for the optimal fitness value.
GraphS and GraphM are multivariate method similar to EMD and HDD, however, their running times are similar to the other univariate discretization algorithms. The average running time of GraphM is more than ten times faster than GraphS. It is because GraphM iteratively merged considering two adjacent intervals. In contrast, GraphS considered all cut points in order to find the best cut point and hence lose some time in searching. More details are discussed in “Time complexity and parameter analysis”.
Predictive accuracy

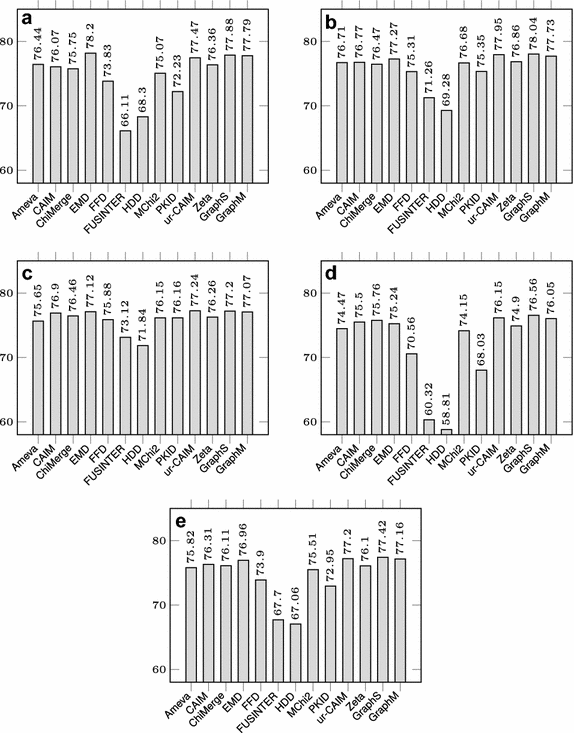

Based on the classification predictive accuracy, Fig. 12 summarizes the average predictive accuracies over C4.5, KNN, NB, SVM, and all classifiers. The details of these results are included as an Additional file 2.
According to these results, the three discretization algorithms with the highest average predictive accuracy across 30 standard datasets with C4.5 classifier are EMD (78.20%), GraphS (77.88%), and GraphM (77.79%), respectively. The similar observation with KNN classifier are GraphS (78.04%), urCAIM (77.95%), and GraphM (77.73%). The three highest average predictive accuracy with NB classifier are urCAIM (77.24%), GraphS (77.20%), and EMD (77.12%). The results indicate that GraphS, GraphM, urCAIM, and EMD generally performed better than the rest techniques included in this experiment. With respect to the overall measures across three classifiers, the first highest accuracy belongs to GraphS (77.42%), the second is urCAIM (77.2%), and the third is GraphM (77.16%). As such, it has been demonstrated that the graph clusteringbased discretization algorithm is usually more accurate than many other wellknown counterparts.
Friedman rankings with critical differences (CD)
The average ranking of 13 discretization algorithms with three comparisons of: number of intervals, running times, and predictive accuracy is shown in Figs. 13 and 14. Because all the p value of these comparisons based on Friedman test are 0.000, all the algorithms are not equivalent ranking. Therefore, the critical differences (CD) based on Nemenyi posthoc test and \(p_{Holm}\) of Holm posthoc test can be computed. Each figure, the left top horizontal line is the CD interval, the second line that rank from 1 to 13 is the axis that contains average ranks of 13 algorithms, and the best value ranking is given as a small value. Note that the tick horizontal lines are the marked intervals. If the distance between algorithm ranks does not over the CD interval, the marked interval will be shown, i.e., they are not significantly different.
In the ranking of average number of intervals, EMD and ChiMerge are the first and second lowest ranking, there is no significantly different of the pair. Otherwise, EMD shows significantly lower number of intervals than the rest algorithms. In the ranking of average running times, urCAIM obtains the first ranking, whereas EMD appears to be the last. In addition, urCAIM is not significantly different to GraphM, CAIM, ChiMerge, FFD, PKID, Zeta, and GraphS.
In order to finely compute the ranking of predictive accuracy of each discretization algorithm, 300 predictive accuracy results over 30 standard datasets and tenfolds evaluation are examined. In Fig. 14, the lowest average accuracy rankings for C4.5 classifier belongs to EMD. However, it is not significantly better to GraphM, GraphS, urCAIM, and Ameva. GraphM obtains the lowest ranking for KNN classifier, however, it is not significantly different to urCAIM, GraphS, and EMD. Three lowest rankings for NB classifier are GraphM, GraphS, and EMD, there are no significantly different. In the average ranking for SVM classifier, GraphS obtains the lowest ranking, but it is not significantly better than ChiMerge, urCAIM, GraphM, and CAIM. In summary, the average ranking over all classifiers, GraphM, GraphS, and urCAIM obtain the first, second, and third lowest rankings, respectively, there are no significantly different. However, GraphM and GraphS are significantly better than the rest algorithms.
Given these findings, GraphM and GraphS can be useful not only for data analysis with high accuracy, but also with a reasonable time requirement. Also, the resulting discretized dimensions can be coupled with many effective feature selection approaches found in the literature.
Friedman rankings with \(p_{Holm}\)
Because the Friedman test of all comparisons are not equivalent ranking, \(p_{Holm}\) of Holm posthoc test can be computed. All results of the tests are provided in Table 4. In order to compare the \(p_{Holm}\), This study used a level of significance is 0.01. If the \(p_{Holm}\) value is lower than 0.01, there is significantly different of the pair.
The results of \(p_{Holm}\) test for a number of intervals, running times, and predictive accuracy of all classifiers is similar to the Nemenyi posthoc test. EMD is not significantly lower number of intervals than ChiMerge. urCAIM is not significantly faster than GraphM, CAIM, ChiMerge, FFD, PKID, and GraphS. For average ranking of predictive accuracy over all classifiers, GraphM, GraphS, and urCAIM obtain the first, second, and third lowest ranking. By using significant level \(\alpha =0.1\), GraphM is not significantly better accuracy than GraphS and urCAIM, in fact, GraphM is significantly better accuracy than the rest discretization algorithms. Besides, by using \(\alpha =0.05\), GraphM shows significantly better predictive accuracy than the other wellknown discretization algorithms.
Experiment results and analysis of imbalanced datasets
Number of intervals
The average numbers of intervals per attribute of 20 imbalanced datasets for 13 discretizers are shown in Fig. 15a. The details of the result are included as an Additional file 3.
The average number of intervals per attribute result is similar to the standard datasets, which the lowest and the highest average number of intervals belong to EMD (1.48) and HDD (154.51), respectively. Some discretization algorithms are an implicit coupling with supervised feature selection, especially EMD, ChiMerge, and MChi2 as shown in Fig. 15c, average number of remove attributes. The proposed methods obtain the lower number of intervals, the average values of GraphS and GraphM is 2.4. They do not remove any attributes. The proposed methods can be combined with advanced feature selection methods on the latter, the classification performance may improve.
Running time

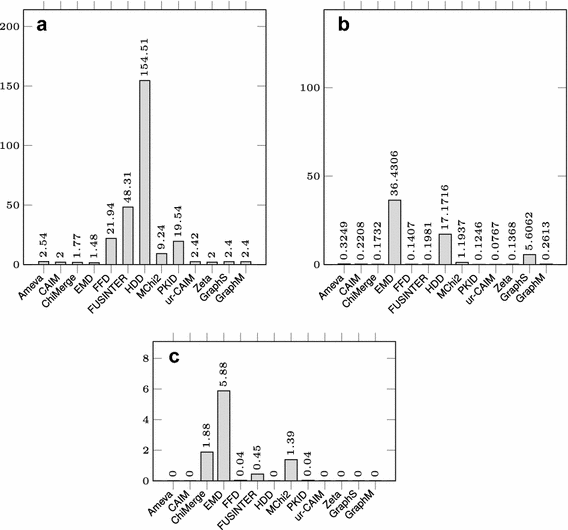

The running time result is averaged from fivefold discretization, including two processes of the crating discretization scheme and transform numeric to nominal dataset. The fastest running time belongs to urCAIM (0.0757 s), while the slowest is EMD (36.4306 s) as shown in Fig. 15b, average running time in seconds. Generally a multivariate method requires higher running time than univariate method. GraphS and GraphM are multivariate methods same as EMD and HDD. However, their running time is faster than EMD and HDD, which the running time is similar to univariate method. The details of running time results are included as an Additional file 3.
AUC

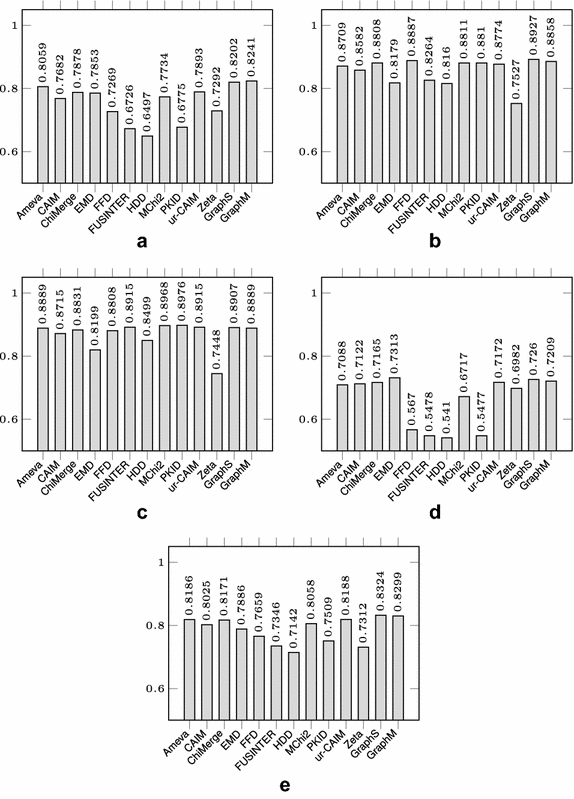

Based on the classification performance of AUC, Fig. 16 summarizes the average AUC of 20 imbalanced datasets over C4.5, KNN, NB, SVM, and all classifiers. For more details of these results, this study included the results as an Additional file 3. The proposed methods usually achieve high AUC value. For the average of all classifiers, GraphS, GraphM, and urCAIM show the first, second, and third highest AUC values that are 0.8324, 0.8299, and 0.8188, respectively. The results suggest that the proposed methods can handle with imbalanced datasets, which usually achieve high AUC value than many wellknown discretizers.
Friedman rankings with critical differences (CD)
Based on Friedman ranking test, 20 imbalanced datasets, Figs. 17 and 18 show the ranking of: number of intervals, running times, and AUC. Each ranking is not equivalent ranking (p value of the test is 0.000), the critical differences (CD) based on Nemenyi posthoc test is included in the figures.
This ranking of average number of intervals is similar to the ranking of the standard datasets, EMD and ChiMerge show the first and second lowest ranking, while HDD shows the highest ranking. In the ranking of average running times, GraphM obtains the first ranking, however, it is not significantly different to urCAIM, Zeta, ChiMerge, FDD, PKID, and GraphS. The slowest running time still belongs to EMD.
The average ranking of AUC for C4.5, KNN, NB, SVM, and all classifiers shown in Fig. 18. In the ranking of AUC for C4.5 and SVM classifiers, the top three lowest rankings belong to EMD, GraphM, and GraphS. These tree discretizers are close in the rankings and are not significant differences. In the average ranking of AUC for KNN classifier, GraphS and GraphM obtain the lowest ranking. However, they are not significant differences to FFD, PKID, urCAIM, and MChi2. For NB classifier, the first and second lowest ranking belongs to FFD and PKID, where GraphS and GraphM lie in the fourth and seventh ranking, respectively. In summary, the average ranking over all classifiers, GraphS and GraphM obtain the first and second best ranking. However, they are not significantly different to urCAIM.
These ranking suggests that the proposed methods can be useful for imbalanced data, achieve the best ranking of AUC. Furthermore, they require lower running times and obtain a lower number of intervals.
Friedman rankings with \(p_{Holm}\)
Because the Friedman ranking test of the number of intervals, running times, and AUC of imbalanced datasets are not equivalent ranking test, these tree ranking can compute \(p_{Holm}\) of Holm posthoc test. The \(p_{Holm}\) results of these rankings are provided in Table 5. In order to compare \(p_{Holm}\) of the rankings, the significant level (\(\alpha\)) is set to 0.01. If the \(p_{Holm}\) value is lower than 0.01, there is significantly different of the pair.
The \(p_{Holm}\) results of the average ranking number of intervals shows that EMD is not a significant difference to ChiMerge. However, it is significant lower number intervals to the rest discretizers. In the average ranking running time, GraphM is not significantly faster than urCAIM, Zeta, ChiMerge, FFD, PKID, and GraphS. For an average ranking of AUC over all classifiers, GraphS is not significantly better AUC than GraphM and urCAIM. However, by using \(\alpha =0.05\), GraphS shows significantly better AUC than the other wellknown discretization algorithms.
Experiment results of Toy dataset
This section aims at showing characteristics of different discretization algorithms on the Toy dataset. The discretization results of Toy dataset are represented as a scatter plot as shown in Fig. 19, where the vertical dashed lines represent the cut points of attribute \(A_1\) and horizontal dashed lines represent the cut points of attribute \(A_2\).
The results show that, ChiMerge and FFD created no cut points. The number of cut points selected by ChiMerge depends on the significant level (\(\alpha\)), and in this study \(\alpha\) is set to 0.05 (recommended by the authors of ChiMerge). Too high significant level (\(\alpha\) is close to 0) will lead to over merging. In order to allow the algorithm to select the cut points, the significant level should be reduced. FFD algorithm is an unsupervised method that the user must specify the frequency size. In this study the frequency size is set 30 (recommended by the authors of FFD). Since the number of the data points is no more than 30, all data points are grouped into one interval. In order to achieve the desired cut points, the frequency size should be smaller than the number of data points.
The result cutpoint selection using EMD is only a single cutpoint at 2.5 of attribute \(A_1\). Because the fitness function of EMD is weighted from the lower predictive error and the lower number of intervals, the attributes that do not use to create the classifier model mostly generate null cutpoint. Specific to the aforementioned result, this selected cutpoint also damages the natural groups of data, which is illustrated by the upperleft 5 data points.
The proposed algorithms of GraphS and GraphM show the same discretization results. The cut points of \(A_1\) and \(A_2\) are 3.5. Although the adjacent data points at the cut point 3.5 of \(A_1\) (3:7, 4:1) are the same target class, they highly different in natural groups, which the upper left 5 data points are the same natural group and the lower 5 data points is the other. The graphbased algorithms could preserve the natural groups of data points by selected this cut point. In addition, the proposed algorithm do not partition a right data point (12:5) to be alone same as FUSINTER, MChi2, and HDD. It is clearly shown that the graph clusteringbased discretization algorithms give a finite number of cut points, prevent an unnatural bias for undesiredly partitioning out some data points, and preserve the natural groups of data points. It is different from CAIM, Zeta, Ameva, and urCAIM that only considered the target class. Based on the purity class, CAIM, Zeta, Ameva, and urCAIM selected the cut point at 2.5 of \(A_1\). The result damaged the upper left natural group.
PKID is an unsupervised method that does not consider the target class and the natural groups. The algorithm discretizes by giving all intervals similar numbers of data points. Considering \(A_1\), there are 3 intervals and the number of data points in the intervals are 4, 4, and 2. For \(A_2\), the number of data points in the divided intervals are 3, 4, and 3.
FUSINTER, MChi2, and HDD algorithms resulted in very large numbers of intervals, especially HDD algorithm that selected every single possible cut point.
Time complexity and parameter analysis
Time complexity
Besides previous quality assessments, the computational requirements of the graph clusteringbased methods are discussed here. To estimate the time complexity, only the time taken to discretize a single attribute is considered. As the AF matrix is created once and share resources to discretize other attributes, the complexity time did not include the time of creating the matrix. In addition, for the ease of computing the denominator of NAsso, \(\omega (C_i, C_i) + \omega (C_i, \bar{C_i})\) (see Eq. 7), the sum of each row is calculated and stored in sumRowsVector.
For GraphS algorithm (see Fig. 7 for details), the primary time complexity of the algorithm is spent at line 9 to line 15, which is the step of finding the best cut point. The algorithm selected the best cut point from all possible cut points (c) by computing NAsso. As the denominator of NAsso could easily be calculated by summing all of the rows in the sumRowsVector, the primary time is only spent on calculating the numerator, \(\omega (C_i, C_i)\) (intercluster). In Fig. 20 balance partition and balance the number of cut points are assumed; therefore at each parallel step of finding the best cut points, only half of the original or previous matrices are taken into account, the time complexity is diminished. Hence, the time complexity is formulated as Eq.16.
where, \({n^2}/{2}\) is the time complexity of NAsso and c is the number of possible cut points. In this case, it is straightforward to sum across each row of the recursion tree to obtain the total time complexity. However, the depth of the tree does not really matter because the amount of time at each level drastically decrease as it expands deeper such that the total time is only a constant factor more than the time spent at the root. Therefore, the time complexity of GraphS is \(\mathcal {O}(cn^2)\). However, if each data value of an attribute is the distinction, the number of possible cut points is \(n1\). Hence, the time complexity is \(\mathcal {O}(n^3)\).
For GraphM algorithm (see Fig. 9 for details), the time complexity of NAsso is similar to GraphS but GraphM does not take any time to find the best cut point. From line 7 to line 9, GraphM computes NAsso of a small matrices many times; however, the process is very fast. After that, from line 10 to line 17 the algorithm iteratively merges until all intervals merge into one. Each merging computes NAsso twice as that of the adjacent interval; therefore, the time complexity of GraphM is \(\mathcal {O}(2n^2)=\mathcal {O}(n^2)\).
Parameter analysis
The proposed algorithms include one parameter that is the \(\beta\), the significant better rate, which is used in the stopping criterion. This study sets \(\beta =1.01\). A good \(\beta\) value will resulting finite number of intervals that leads to achieve high classification performance. The parameter analysis aims to provide a practical means that users can make the best use of the graph clusteringbased framework. To this extent, Fig. 21 illustrates such a relationship, based on the predictive accuracy of standard datasets, the number of intervals of standard dataset, AUC of imbalanced datasets, and number of intervals of imbalanced datasets across all classifiers. In the figure, the value of \(\beta\) is varied from 1.00 through 1.05, in steps of 0.005.
An important observation of average accuracy of the standard dataset is that the proposed algorithms performed well with the \(\beta\) value are between 1.005 and 1.015. The accuracy and performance dropped if \(\beta\) is greater than 1.015 as the stopping criterion are quickly met and hence the process stops too early such that only two intervals are obtained. In contrast, if \(\beta\) is not considered \((\beta =1)\), the algorithm will be over partitioning and result in too many intervals. Therefore, a good \(\beta\) value that gives a decent number of intervals are in the rank 1.005–1.015. Similarly, the average AUC results of imbalanced datasets perform well with the \(\beta\) are in the rank 1.000–1.015, especially \(\beta =1.005\).
Conclusion
This paper presents two novel, highly effective graph clusteringbased discretization algorithms that are graph clusteringbased discretization of splitting method (GraphS) and merging method (GraphM). They aim to discretize by considering the natural groups and prevent partitioning any interval that will possess a small number of data points. The algorithms view the data points as a graph, where the vertices are the data points (instances) and the weighted edges are the similarity between the data points. The NAsso measure is used as the discretization criterion of the algorithms. The empirical study, with different discretization algorithms, classifiers, two types of dataset of standard datasets and imbalanced datasets, suggests that the proposed graph clusteringbased methods usually achieve superior discretization results compared to those of the previous wellknown discretization algorithms. The prominent future work may include an extensive study regarding the scoring of the weighted similarity edges by considering other distance measures. In addition, this methodology will also be applied to specific domains such as biomedical datasets; where discretization is not only required for accurate prediction, but also an interpretable learning model.
